How To Adjust The Angle of Motor of Rotary Vibrating Screen

2022-03-04
Share:
The three-dimensional rotary vibrating screen is a high-precision fine powder screening machine with low noise and high efficiency. It takes 3-5 minutes to quickly change the screen. It has a fully enclosed structure and is suitable for screening and filtering particles, powder, mucus and other materials.

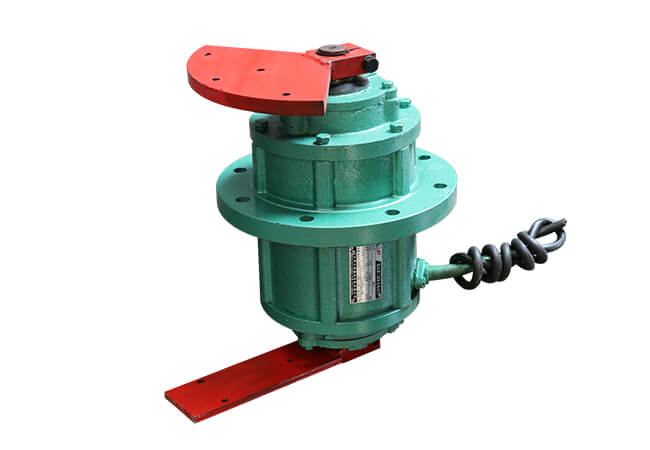

The three-dimensional rotary vibrating screen uses a vertical motor as the excitation source. The upper and lower ends of the motor are equipped with eccentric weights to convert the rotating motion of the motor into a horizontal, vertical, and inclined three-dimensional motion, and then transfer this motion to Screen surface. From this we can see that the angle of the upper and lower weights directly affects the effect of material screening. The editor gives the following analysis on the adjustment angle of the rotary vibrating sieve weight:

1. When the included angle is 0 degrees: the material moves rapidly from the center to the surroundings. At this time, the material has the shortest trajectory on the screen surface, which is generally used for rough screening of the material.
2. When the included angle is 15 degrees, the material moves in a vortex, and the material movement track is moderate, which is mostly used for ordinary screening.
3. When the included angle is 45 degrees, the material moves in a vortex. At this time, the material reaches the longest trajectory on the screen surface, which is used for precision screening.
4. When the included angle is 90 degrees, the material moves from the periphery to the center, which is generally used for wet screening or screening of special materials.

The above is the motion trajectory of the rotary vibrating screen weight in different angles. Different angles have different effects on material screening. Users can make adjustments according to their actual needs.
