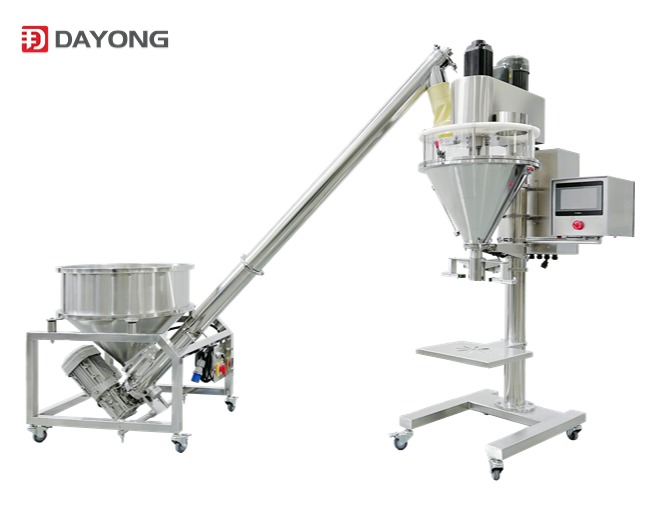

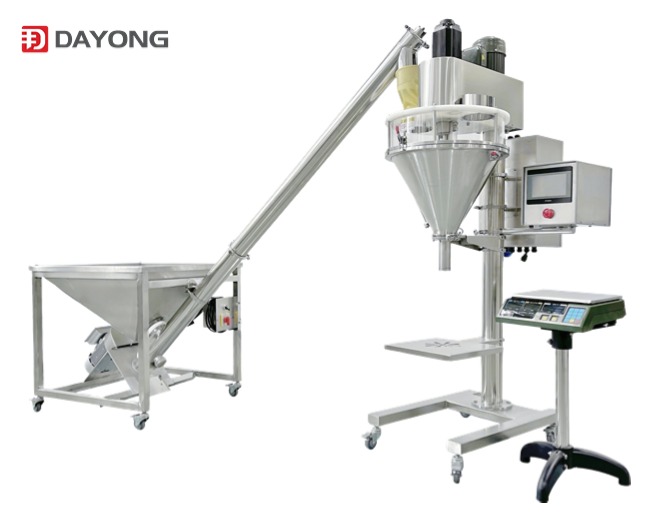

Product name: Auger Filling Machine
Application: powder, granules
Screw conveyor:ls108/114/133/159/219/273/325mm
Filling range: 2g-5kg
Packing speed: 1200- 3500 bags/hour
Application industry: food, grain, chemical and other powder industries.
Features: easy operation, disassembling for cleaning and simple maintenance.

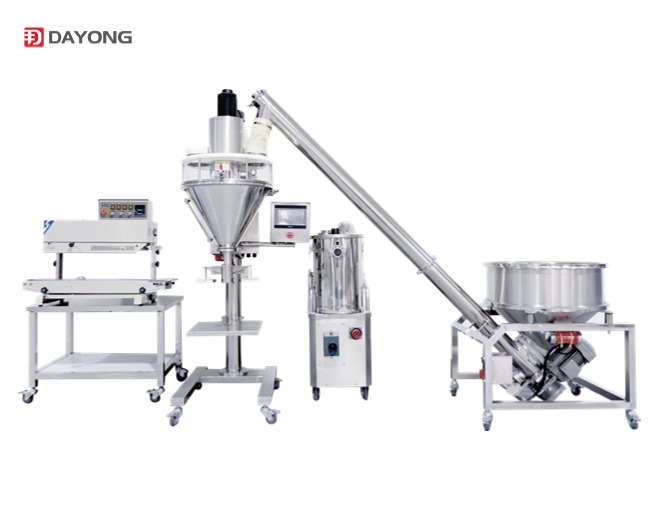

Option: band sealer, screw conveyor, belt conveyor, vacuum conveyor, rotary packer.
Description
Parameters
Inquiry
Description
This type of auger filler can do measuring and filling work. Due to the special professional design, it is suitable for the fluidic or low-fluidity materials, like milk powder, Albumen powder, rice powder, coffee powder, solid drink, condiment, white sugar, dextrose, food additive, fodder, pharmaceuticals, agriculture pesticide, and so on.
Stainless steel structure, Contact parts SS304
Include hand-wheel of adjustable height.
Replacing the auger parts, it is suitable for material from super thin powder to granule.
Parameters
  Powder filling machine parameters
Filling Range 2g-5kg
Measurement Volume/Weighing
Speed 1200-3500bags/h
Accuracy ≤1%
Voltage AC380V/220V/110V
Power 1.5KW
 Screw conveyor parameters
Model LS108 LS114 LS133 LS159 LS219 LS273 LS325 LS426
Diameter of screw(mm) 108 114 133 159 219 273 325 426
Speed of main shaft(r/min) 190 190 190 112 100 90 90 71
Screw picth(mm) 108 114 133 159 219 273 325 426
Max capacity (t/h) 1 2 4 8 15 20 30 50
Max conveying length(m) 8 10 12 15 18 25 25 25
Working angle(degree) 0~60 0~60 0~60 0~60 0~60 0~60 0~60 0~60
Note: For more information, please directly contact us or leave your message, our engineer will timely reply you.
