Forced vibration screen is a new type of vibration screening machine designed by Xinxiang Dayong Vibration Equipment Co.,Ltd.
Description
Parameters
Features
Application
Inquiry
Description

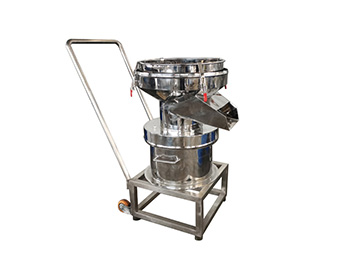

Forced vibration screen is a new type of vibration screening machine designed by Xinxiang Dayong Vibration Equipment Co.,Ltd. The main feature is the installation of stainless steel scraper (also install brush), the device is easy to strengthen the self-cleaning function of vibrating screen mesh. such as in flour screening, some fine slag easy to fall in the mesh, the impurity can be pushed to the discharging port, and the automatic discharge of the impurities can be automatically discharged, and the occurrence of the blocking net can be reduced.
Parameters
Type Power(KW) Diameter of screen(mm) volume(mm) Layer
DYQ-600-1S 0.55 550 800*800*680 1
DYQ-800-1S 0.75 750 900*900*780 1
DYQ-1000-1S 1.5 950 1160*1160*880 1
DYQ-1200-1S 1.75 1150 1360*1360*980 1
DYQ-1500-1S 2.2 1450 1850*1850*1130 1
DYQ-1800-1S 3 1750 2200*2200*1360 1

Note: If you have any inquiry, please email us or leave your message, our engineer will timely contact with you.
Note: For more information, please directly contact us or leave your message, our engineer will timely reply you.
Features
1.High efficiency, delicate and durable design, any powder, mucus can be sifted
2.Easy to exchange,  operate and clean.
3.Impurity, coarse material can be discharged automatically and can be operated continuously.
4. Unique grid design, long screen use time, quick mesh change only 3-54 minutes.
5. Small size, occupies little space, easy to move.
6. The screen machine can reach up to five layers. Three layers are recommended.
Application
1) Chemical industry: resin pigment, medicine, grease, paint, palette, etc.
2) Abrasive material and ceramic industry: building sand, mica, alumina, abrasive, refractory material, slurry, etc.
3) Food industry: sugar, salt, alkali, gourmet powder, starch, milk powder, yeast powder, pollen, food additive, bean milk, juice.
4) Paper-making industry: coated slurry, exhaust liquid, paper making liquid and waste water reclamation, etc.
5) Metallurgy and mining industry: quartz sand, ore, titanium oxide, zinc oxide, etc.
