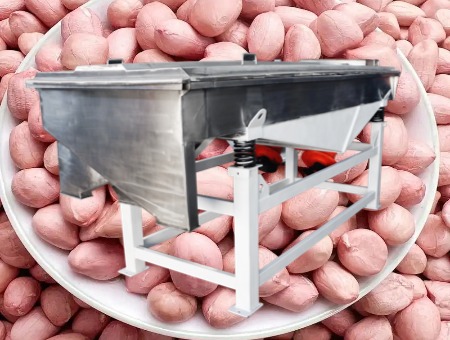

Linear vibrating screen for screening peanuts

Noise and Vibration Control of Rotary Vibrating Screen

Linear vibrating screen for tea processing in dyvibratingscreen.com

DAYONG Vibrating Screen could process the casting sand shale shaker is 2-200 mesh quartz sand shale shaker. This series of linear screen is driven by double vibration motors, and works by the principle of vibration excitation by vibration motors. When two motors rotate synchronously and reversely, the vibration forces generated by the eccentric blocks cancel each other in the direction parallel to the motor axis, and stack into a resultant force in the direction perpendicular to the motor axis, so the motion track of the screen machine is a straight line. The two motor shafts have an inclination angle in the vertical direction relative to the screen surface. Under the combined action of the vibration force and the material gravity, the material is thrown up on the screen surface to jump forward in a straight line motion, so as to reasonably match the screen mesh to achieve the purpose of screening. This is the actual working principle of the linear vibrating screen.
