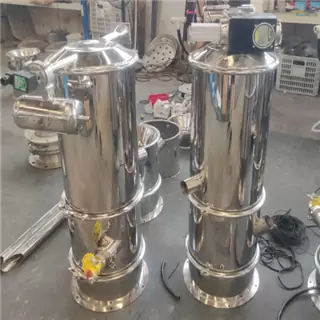

Mobile Roasted Coffee Beans Air Vacuum Conveyor
The mobile roasted coffee bean air vacuum conveyor produced and sold by Xinxiang Dayong vibration equipment Co., Ltd. is specially used for vacuum conveying of coffee beans.Vacuum feeder is a kind of conveying equipment for conveying granular and powdery materials with the help of vacuum suction. It is widely used in the production and scientific research fields of food, pharmacy, chemical industry, ceramics, feed, pigment and agricultural products. The use of vacuum conveyor can greatly reduce dust pollution in the workshop, improve cleanliness, significantly improve productivity, save a lot of manpower and reduce pollution.

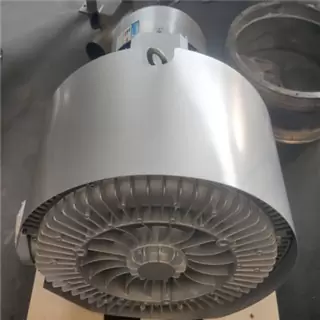

Vacuum suction equipment uses vacuum pump (Venturi principle) to generate vacuum, and the negative pressure generated by vacuum sucks materials from the feed inlet. https://www.alibaba.com/product-detail/Carbon-powder-vacuum-conveyor-automatic-feeder_1600294065174.html?spm=a2700.galleryofferlist.normal_offer.d_title.27f21435k86ANEThen, the air is separated from the material in the filter bin of the separation container. The material falls automatically due to the action of gravity, and the material is collected in the silo. The cyclone separator of the vacuum feeder prevents fine powder from entering the filter to improve the efficiency of the filter. When the silo is full of materials, the vacuum pump will automatically shut down and the pressure in the conveying equipment will reach balance. When the discharge valve is opened, the material flows out through the discharge port and directly falls into the storage container. When discharging, the filter element is automatically cleaned by the back blowing air bag. After blanking, the discharge chamber is automatically closed and the whole conveying process is started again.
