Linear Licorice Vibrating Screen

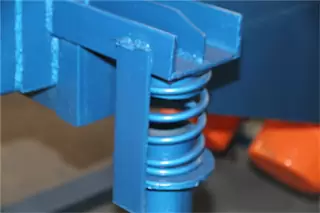

The linear screen is equipped with two vibrating motors which rotate in reverse direction at the same time. The screen box is supported by four springs, which produce reciprocating linear motion under the action of the vibration force generated by the motor. When the vertical component of the vibration acceleration is greater than the gravity acceleration, the materials in the tank are thrown up and jump forward along a parabolic path. Every time the tank is vibrated, the material will be thrown out once. In the process of encountering the screen, materials smaller than the screen can pass through the screen to achieve the goal of classification.

Share:
Content

Multi layer powder linear vibrating screen is driven by double vibrating motors based on the working principle of vibrating motor. When two motors rotate synchronously and reversely, the eccentric blocks that generate vibration offset each other in the direction parallel to the motor shaft, and superpose as resultant force in the direction perpendicular to the motor shaft, so the motion track of the screen machine is a straight line.

The linear screen is equipped with two vibrating motors which rotate in reverse direction at the same time. The screen box is supported by four springs, which produce reciprocating linear motion under the action of the vibration force generated by the motor. When the vertical component of the vibration acceleration is greater than the gravity acceleration, the materials in the tank are thrown up and jump forward along a parabolic path. Every time the tank is vibrated, the material will be thrown out once. In the process of encountering the screen, materials smaller than the screen can pass through the screen to achieve the goal of classification.
