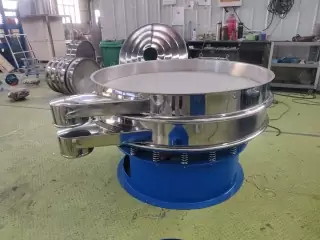

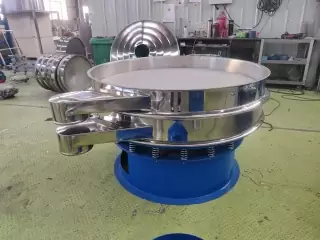

Industrial Stainless Steel Vibrating Sifter Chemical Sieve Screen
The three-dimensional rotary vibrating screen uses a vertical motor as the excitation source, and eccentric weights are installed at the upper and lower ends of the motor to convert the rotary motion of the motor into horizontal, vertical, and inclined three-dimensional motion, and then transmit this motion to the The screen surface makes the material expand involute movement on the screen surface, so this series of vibrating screens are called rotary vibrating screens. Rotary vibrating screen has the advantages of long trajectory of material running and high utilization rate of screen surface. Adjusting the phase angle of the upper and lower ends of the weights can change the movement trajectory of the material on the screen surface. It can perform fine screening and probability screening of materials. grade.
working principle:
The three-dimensional rotary vibrating screen uses a vertical motor as the excitation source, and eccentric weights are installed at the upper and lower ends of the motor to convert the rotary motion of the motor into horizontal, vertical, and inclined three-dimensional motion, and then transmit this motion to the The screen surface makes the material expand involute movement on the screen surface, so this series of vibrating screens are called rotary vibrating screens. Rotary vibrating screen has the advantages of long trajectory of material running and high utilization rate of screen surface. Adjusting the phase angle of the upper and lower ends of the weights can change the movement trajectory of the material on the screen surface. It can perform fine screening and probability screening of materials. grade.
installation and adjustment
1. The motor should be fastened on the installation surface, and the installation surface must be smooth and flat.
2. Install the motor horizontally
3. The lead wire of the motor is made of four-core rubber cable. When connecting to the power supply, the lead wire and cable are not allowed to have a sharp break, and are reliably fixed with the vibrating body.
4. The motor should be grounded reliably. There is a grounding device in the motor, and the lead ends are marked. The grounding bolts can also be used for grounding.
5. Adjustment of exciting force.
