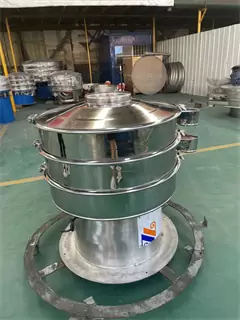

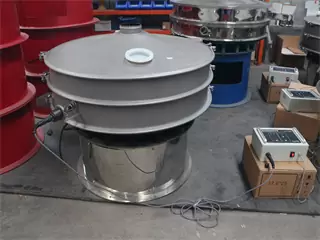

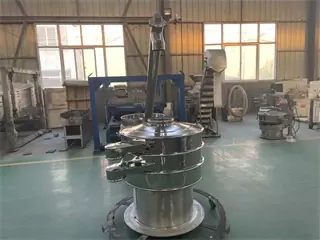

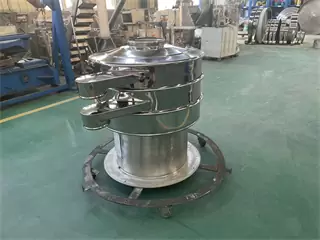

Anti-corrosion Pp Plastic Sieve Rotary Vibrating Screen Sifter Machine Vibration Shaker Sieve/Vibratory Sifter
The anti-corrosion PP plastic screen produced and sold by Xinxiang Dayong vibration equipment Co., Ltd. the Sieve Rotary Vibrating Screen Sifter Machine Vibration Shaker Sieve/Vibratory Sifter is specially used to screen PP plastic.The utility model has the advantages of small volume, light weight, convenient movement, arbitrary adjustment of the direction of the discharge port, automatic discharge of coarse and fine materials, and automatic or manual operation.
DY-600 Vibrating Screen /DY-800 Vibrating Screen/DY-1000 Vibrating Screen
Price:598$-898$
After the Sieve Rotary Vibrating Screen Sifter Machine Vibration Shaker Sieve/Vibratory Sifter of the anti-corrosion PP plastic screen rotary vibrating screen machine is started, its power device, i.e. the eccentric blocks with different phases at the upper and lower ends of the vibrating motor, generates a composite inertial force due to the action of high-speed placement. The inertial force forces the vibrating body of the screen machine to make a compound rotary motion, and the screen frame makes a continuous reciprocating motion under the action of the vibration force, which drives the screen surface to vibrate periodically, Thus, the PP plastic on the screen surface makes a directional and active movement with the screen box. During this period, the PP plastic smaller than the aperture of the screen surface falls to the lower layer through the screen hole and becomes the material under the screen. The PP plastic larger than the aperture of the screen surface is discharged from the discharge port after continuous jumping movement to complete the screening work. The motion trajectory of the vibrating body of the rotary vibrating screen is a complex three-dimensional curve in space. The projection of this curve on the horizontal plane is a circle and the projection on the two vertical planes is two identical ellipses. In practical application, by adjusting the relative phase of the eccentric blocks at the upper and lower ends of the vibrating motor, the motion trajectory of PP plastic on the screen surface can be changed, so as to achieve different screening purposes.The screen is not blocked, the powder is not flying, the screening is fine up to 500 mesh (28 microns) and the filtration is fine up to 5 microns.
